Features:
1. Compact and portable size
2. Two stages of air filtration
3. Low energy consumption and maintenance
4. Quiet operation
5. Variable speed control
6. High quality solid cherry wood cabinet
7. Stainless steel construction
8. No chemicals and no residual contamination
Working principle:

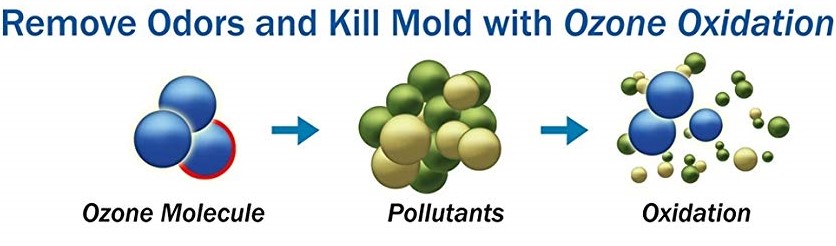

The ozone breaks down odors, microorganisms and other pollutants at their source. Ozone is created by nature during thunderstorms and everyday as sunlight strikes the earth. Employ the cleaning power of nature and create an outdoor fresh environment in your facility!
1. Negative ion: produces Activated Ozone and Anti-animalcule, combines with the floating smogs, pollen and dusts in the air, improving the air quality
2. Ozone: produces the hydroxyl radicals and helps to oxidize odors, bacteria, molds, chemicals and other pollutants
♥ ♥ ♥ Patent Technology ♥ ♥ ♥
Applicable Areas:
|
• Hotel
Rooms
|
•
Restrooms
|
• Carpet
Cleaning
|
• Damp
Basements
|
|
• Food
Markets
|
• Airplanes
|
• Automobiles
|
• Boats/Yachts
|
|
•
Limousines
|
• Rental Cars
|
• Real Estate Sales
|
• Rental Properties
|
|
• Dining Rooms
|
• Remodeling
|
• Warehouses
|
• Office Buildings
|
|
• Janitorial
Services
|
• Fitness Facilities
|
• Food Processing
|
• Restaurant Kitchens
|
|
• Walk-In
Coolers
|
• Bars and Lounges
|
• Commercial Buses
|
• Recreational
Vehicles
|
|
Model
|
ST-300/A
|
|
Functions
|
Negative ion and Ozone
|
|
Input voltage
|
110-240V
|
|
Negative Ion output
|
6 millions ions/cm3
|
|
Ozone output
|
low grade: 50 mg/H; high grade: 500 mg/H;
|
|
Power consumption
|
27 W
|
|
Ozone generation
technology
|
high-voltage transformer
|
|
ozone

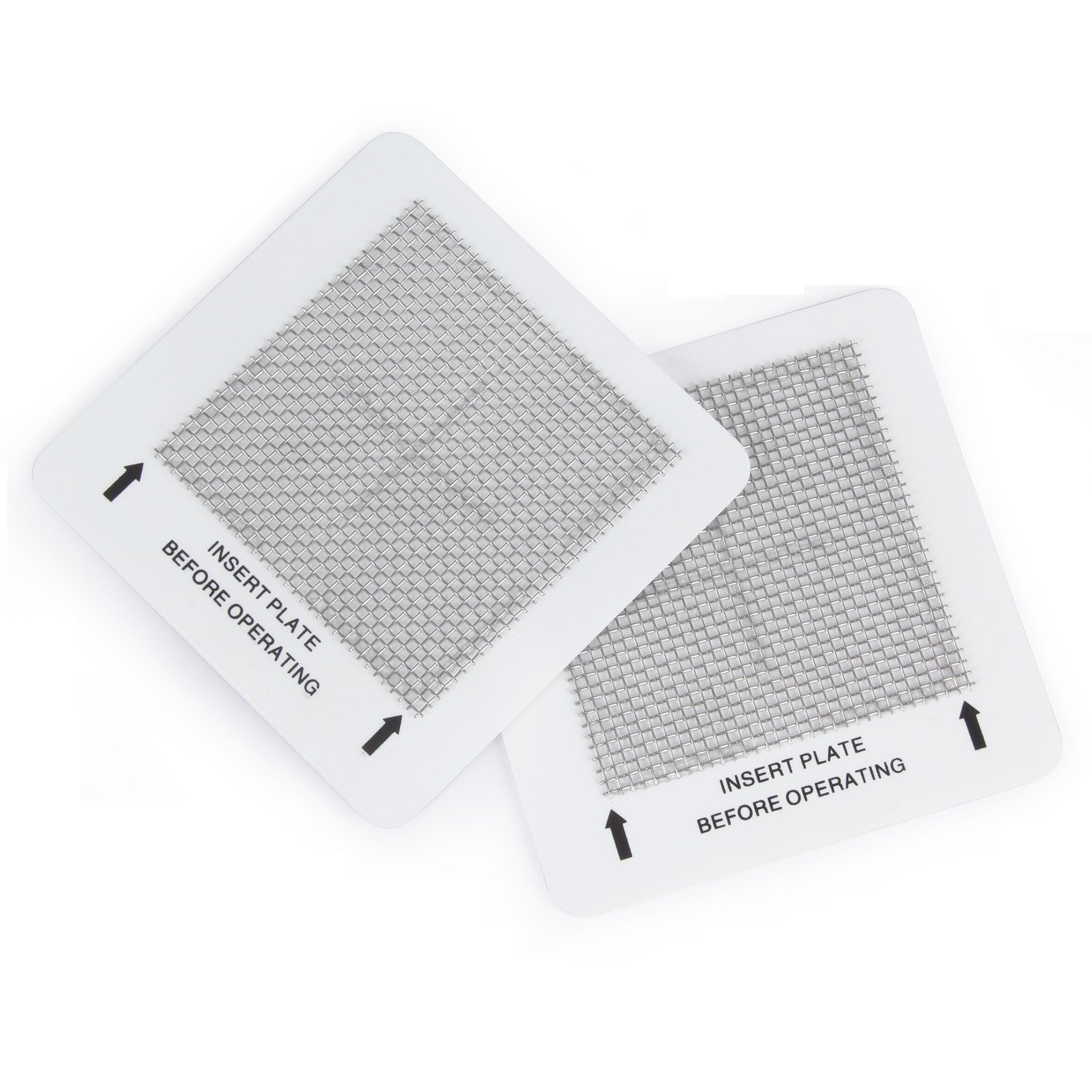

plates ( 2 pcs of plate)
|
|
Gas source
|
Air
|
|
Wind quantity
|
150 CFM
|
|
Outlet temperature
|
<30°C
|
|
Cooling method
|
Air cooling
|
|
Case material
|

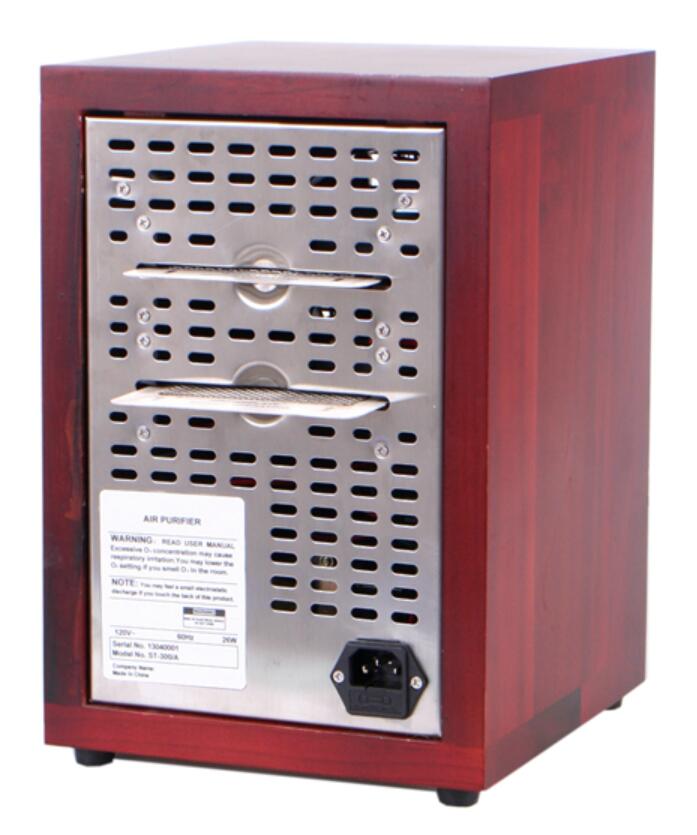

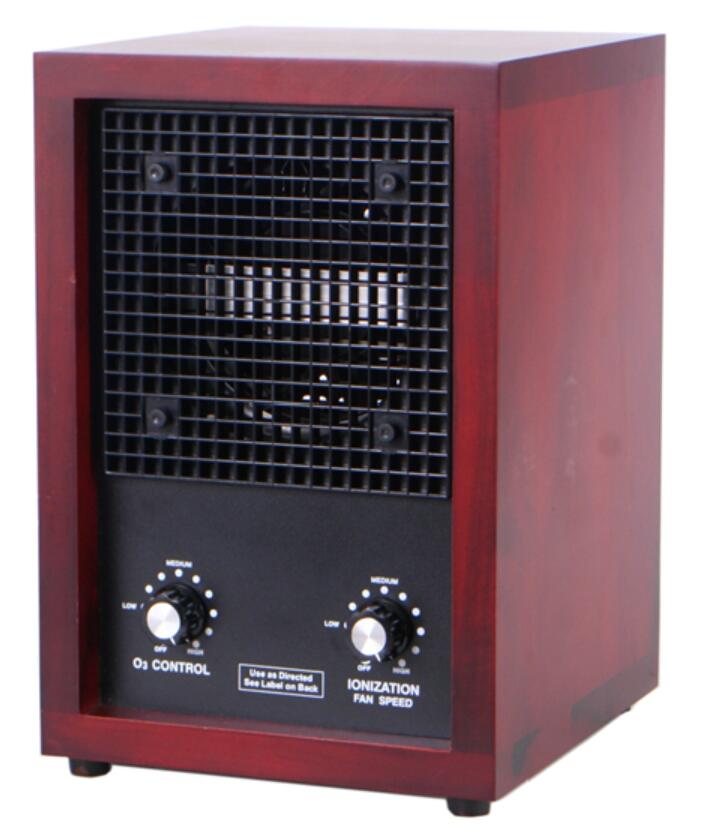

Solid cherry wood cabinet
|
|
Operate
|
Mechanical control
|
|
Speed control
|
Variable speed
|
|
Efficient area
|
3000 sq. ft
|
|
Product size
|
209L x 231W x 306H (mm)
|
|
Net weight
|
6.5 KG
|
|
Gross weight
|
6.9 KG
|
|
Package
|
1 unit/1 color box; 3 color boxes/1 carton
|
|
Box size
|
295x254x360 (mm)
|
|
Carton size
|
786x311x388 (mm)
|
|
Container load
|
20' container: 918 units; 40 containers: 1836 units
|
|
Notes
|
Compact and portable size, quiet operation, No
chemicals and residual contamination
|

|
